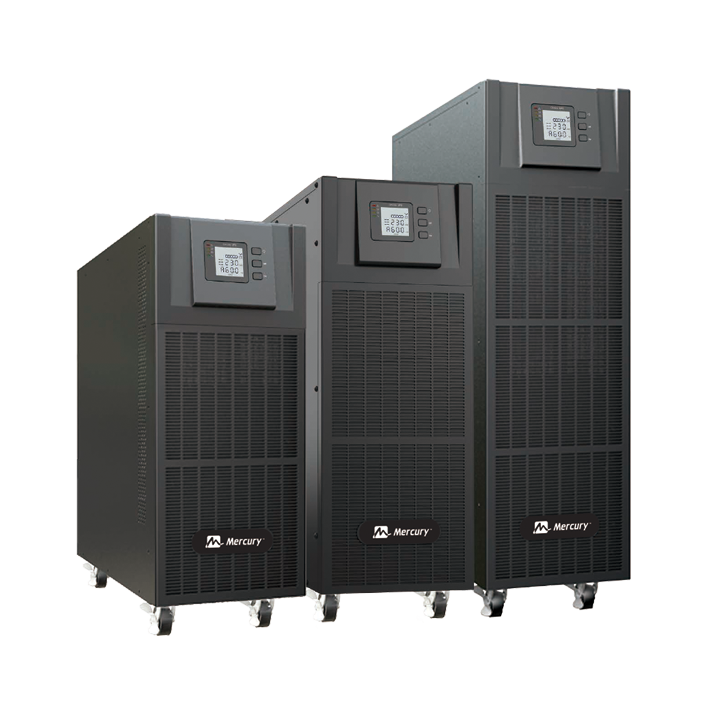

UPS | MDC3300 10~40kVA


  • High power density design
  • N+X parallel redundancy,support maximum 4 units in parallel
  • Online double conversion with DSP control
  • Input current harmonic: 3%
  • Wide input voltage range: 208~478Vac
  • Wide input frequency range 40~70Hz
  • Optimization battery group, the quantity of battery
  • 10~30kVA: 16/18/20pcs (30~50pcs supportable)
  • 40kVA: 30~50pcs
  • Maximum charging current up to 20A (Settable)
  • Dual input source (Optional for standard unit)
  • Colorful 2.4 inch TFT LCD display and 7 inch LCD display LCD are optional
  • Versatile LCD human-computer interface
  • Generator compatible
  • ECO mode operation for energy saving
  • Intelligent fan speed regulation
  • Self-testing when UPS startup
  • 50/60Hz frequency converter mode
  • Cold start
  • The output can meet 100% unbalanced load
  • Multiple protection function: short-circuit, overload, overheat, battery overcharge and overdischarge, output low voltage and fan fault alarm

  • Multiple communication interface: USB, RS232, RS485, Parallel port, Dry contact, Intelligent slot, SNMP card (Optional), Relay card (Optional), Battery temperature sensor (Optional)
